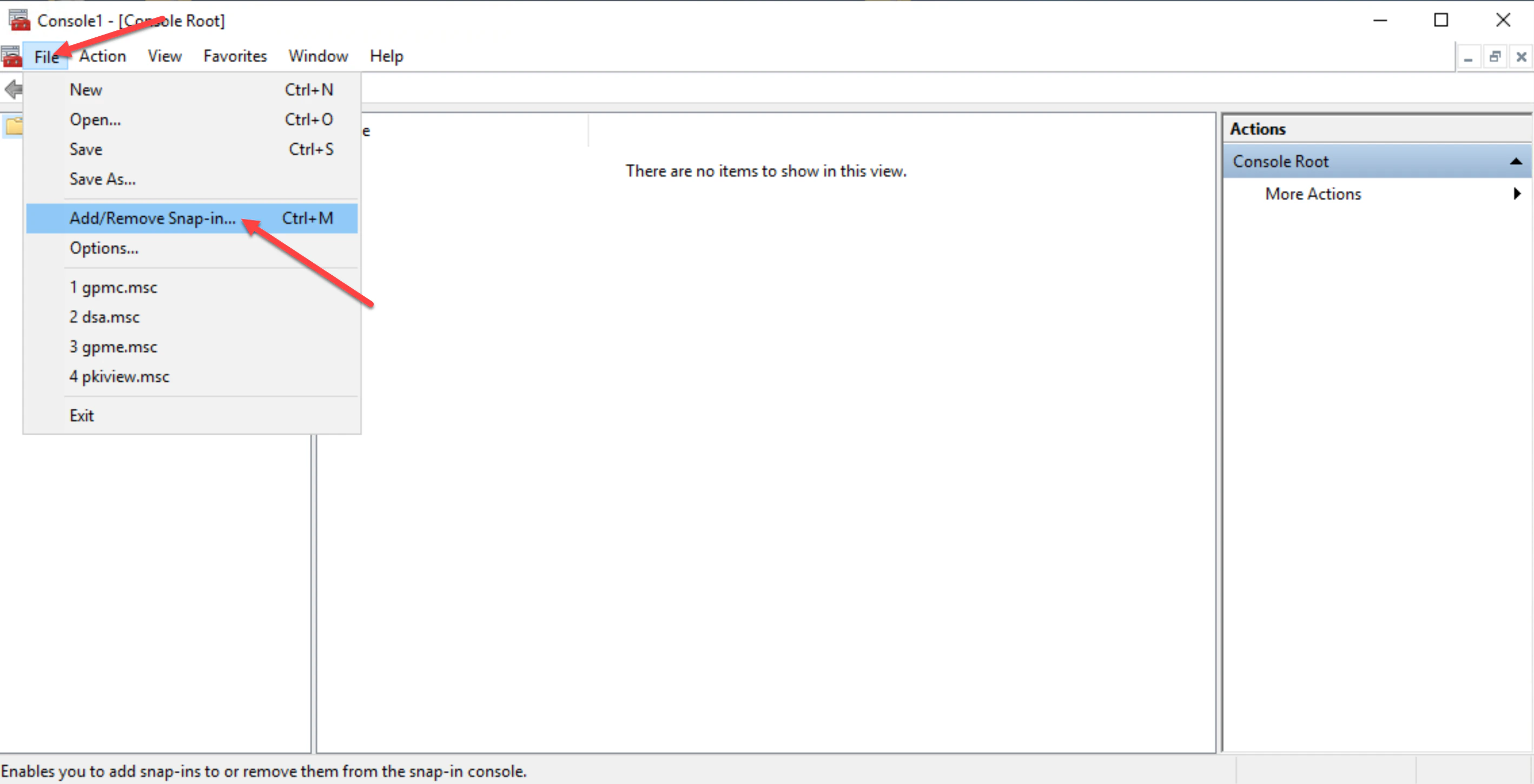

  1. Open the Microsoft Management Console (MMC) and click File then click Add/Remove Snap-in… to add a new snap-in.

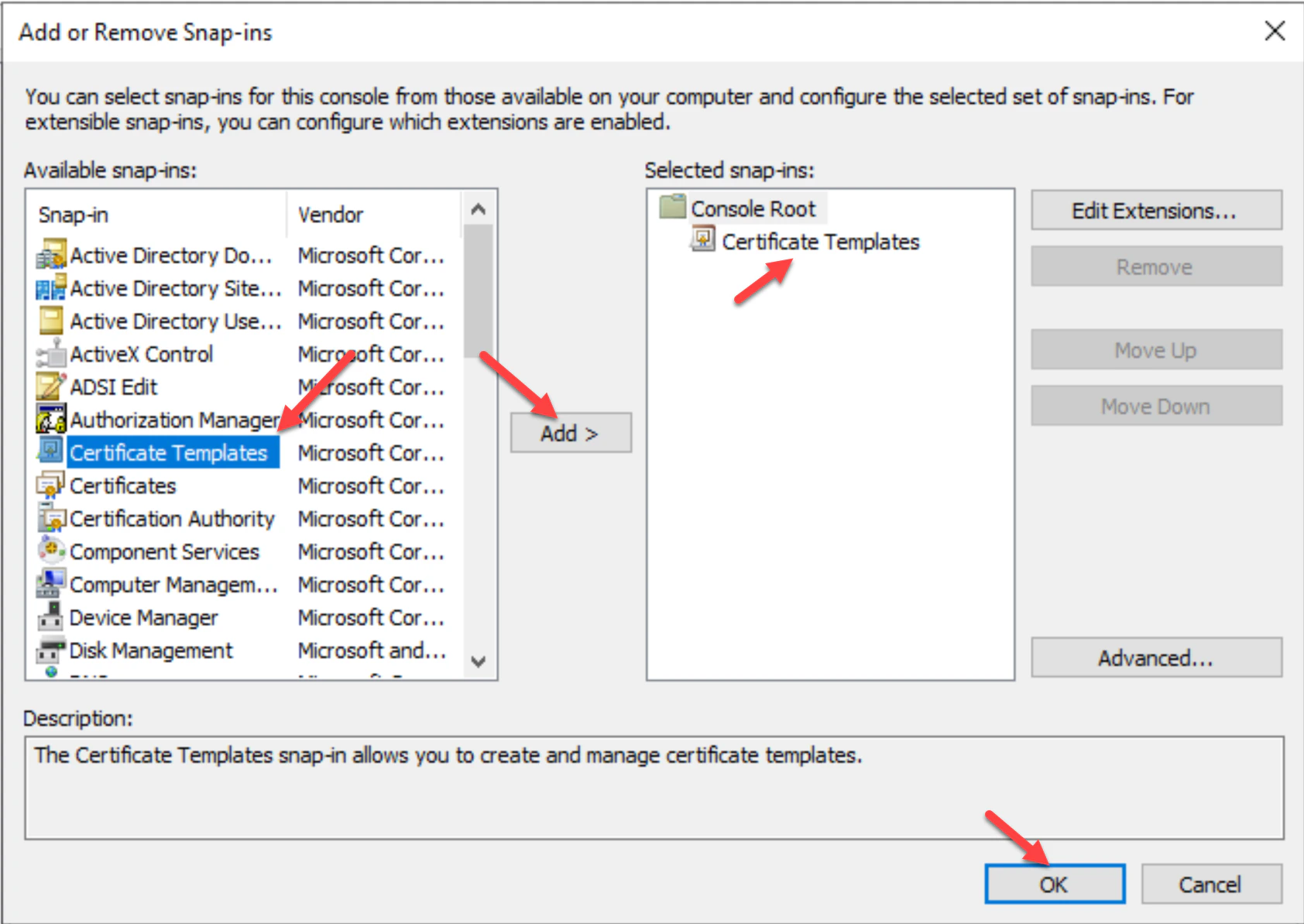

  1. Click Certificate Templates, then click Add and OK.

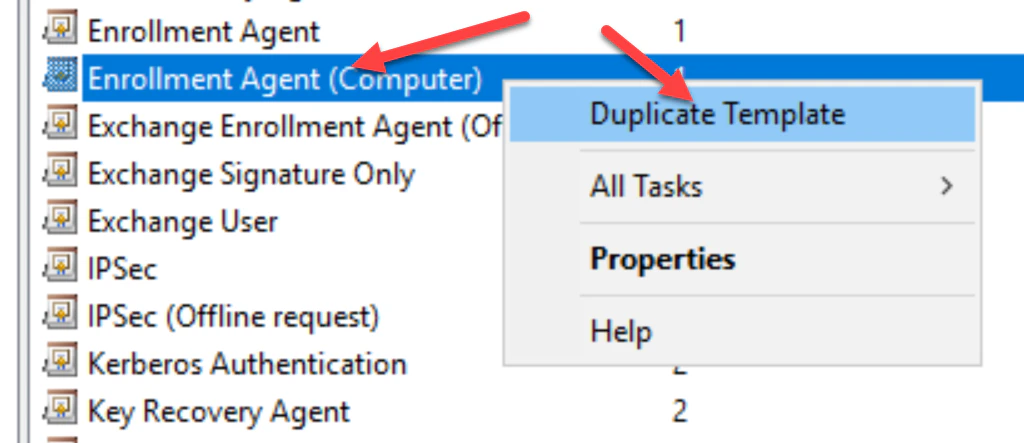

  1. Double-click on the Certificate Templates , then in the list of templates right-click on the Enrollment Agent (Computer) template and choose Duplicate Template.

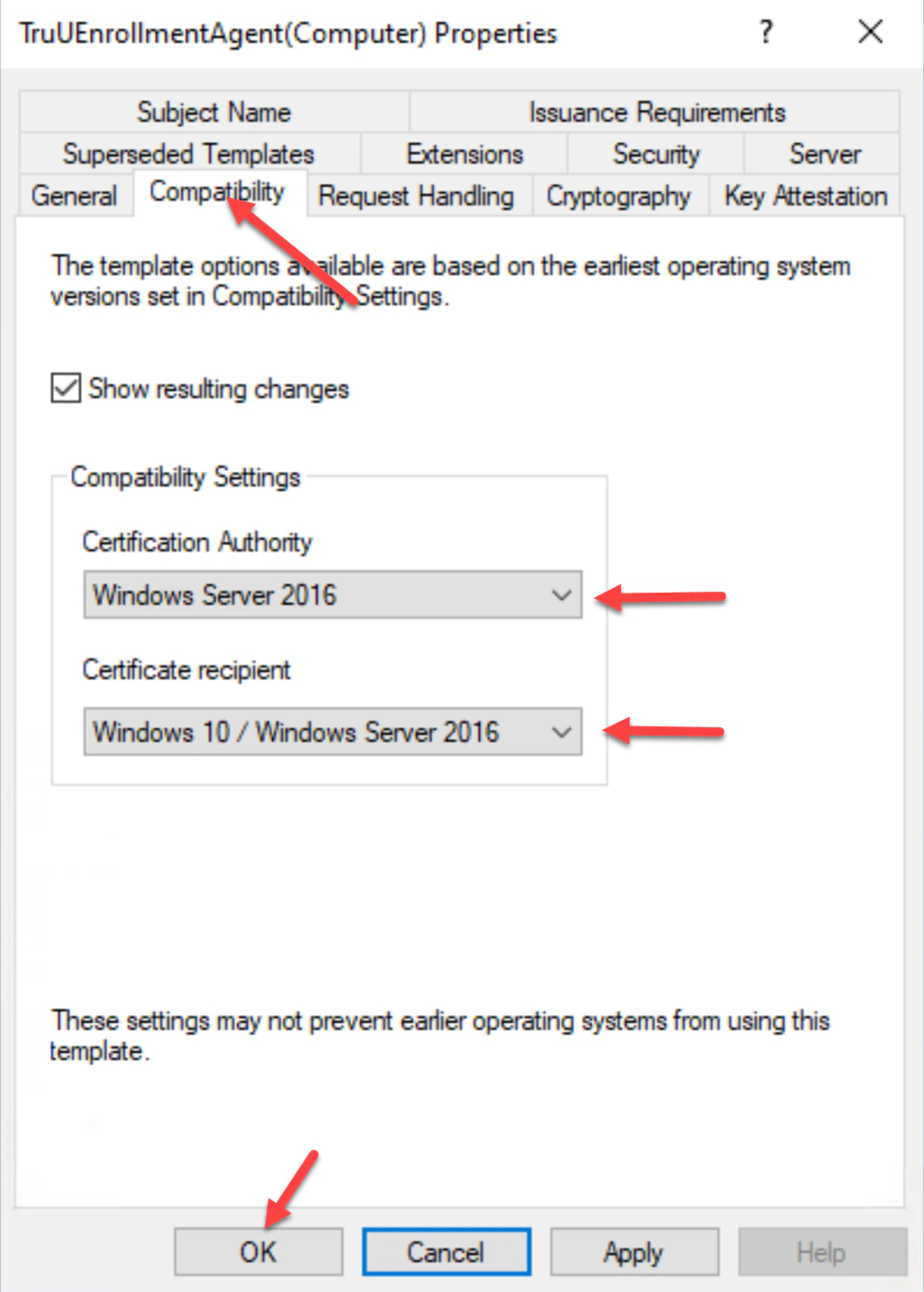

  4. Navigate to the Compatibility tab. Ensure the operating system versions of the Certificate Authority and Certificate recipient are appropriately selected for your environment.

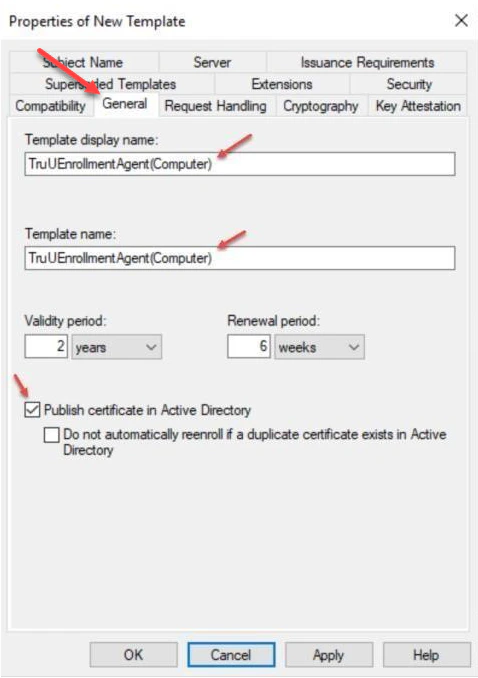

  1. Navigate to the General tab and provide a Template display name: for the template.  I.E TruUEnrollmentAgent(Computer).
NOTE: Do not leave any spaces in the name of the Template display name.  Also the Publish certificate in Active Directory is optional if your company policy doesn’t allow this. This will allow certificate info to be available in the AD object.

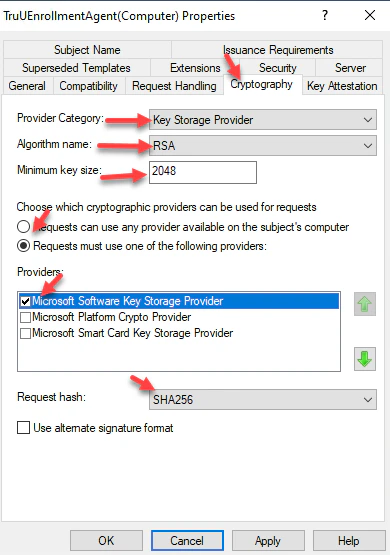

  1. Navigate to the Cryptography tab and set the following settings for Key Storage Provider (KSP) support:

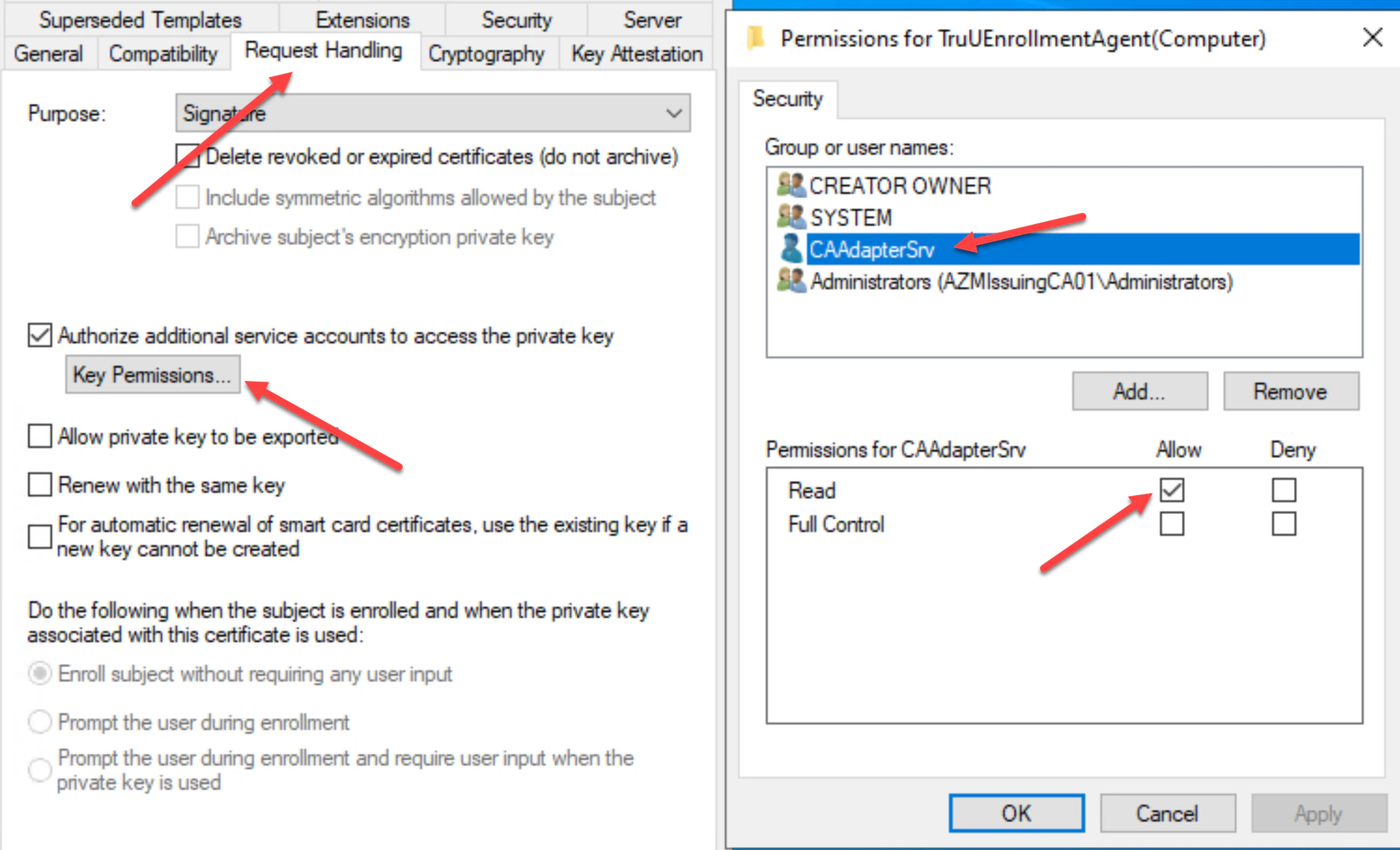

  2. In the Request Handling tab, select Authorize additional service accounts to access the private key, then add the TruU service account created for the CA Adapter service. Assign the TruU account Read permission, then click Apply to complete setup in this tab.

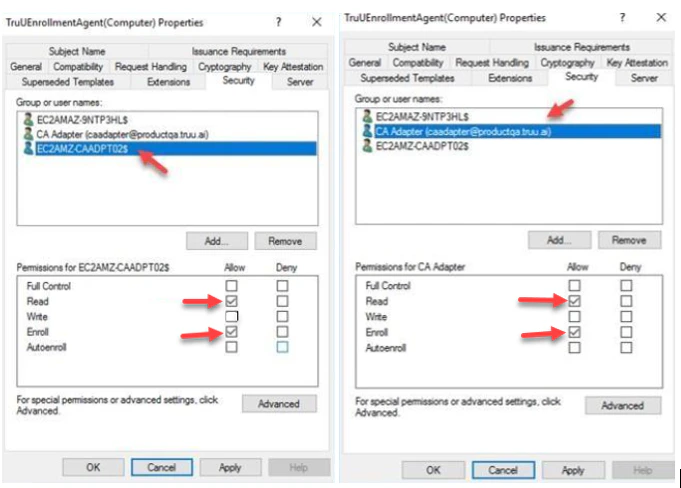

  8. In the Security tab, add the Server that the CA Adapter is installed on with Read and Enroll permissions, and the TruU service account with Read and Enroll permissions. Click Apply to complete setup in this tab and then OK.

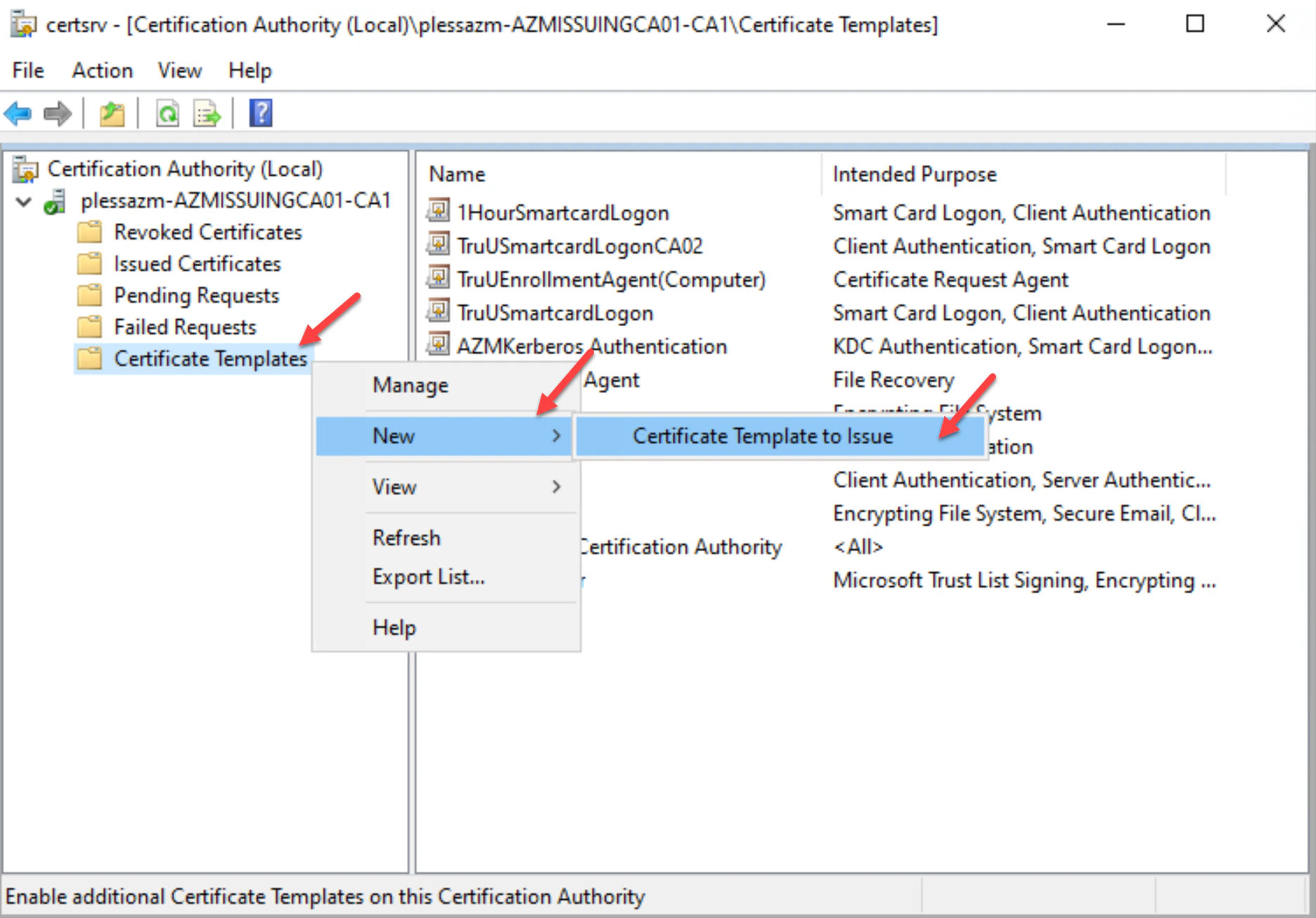

  1. Next, navigate to your Certificate Authority, then click the Certificate Templates folder. Right-click on the folder and choose New then, Certificate Template to Issue.

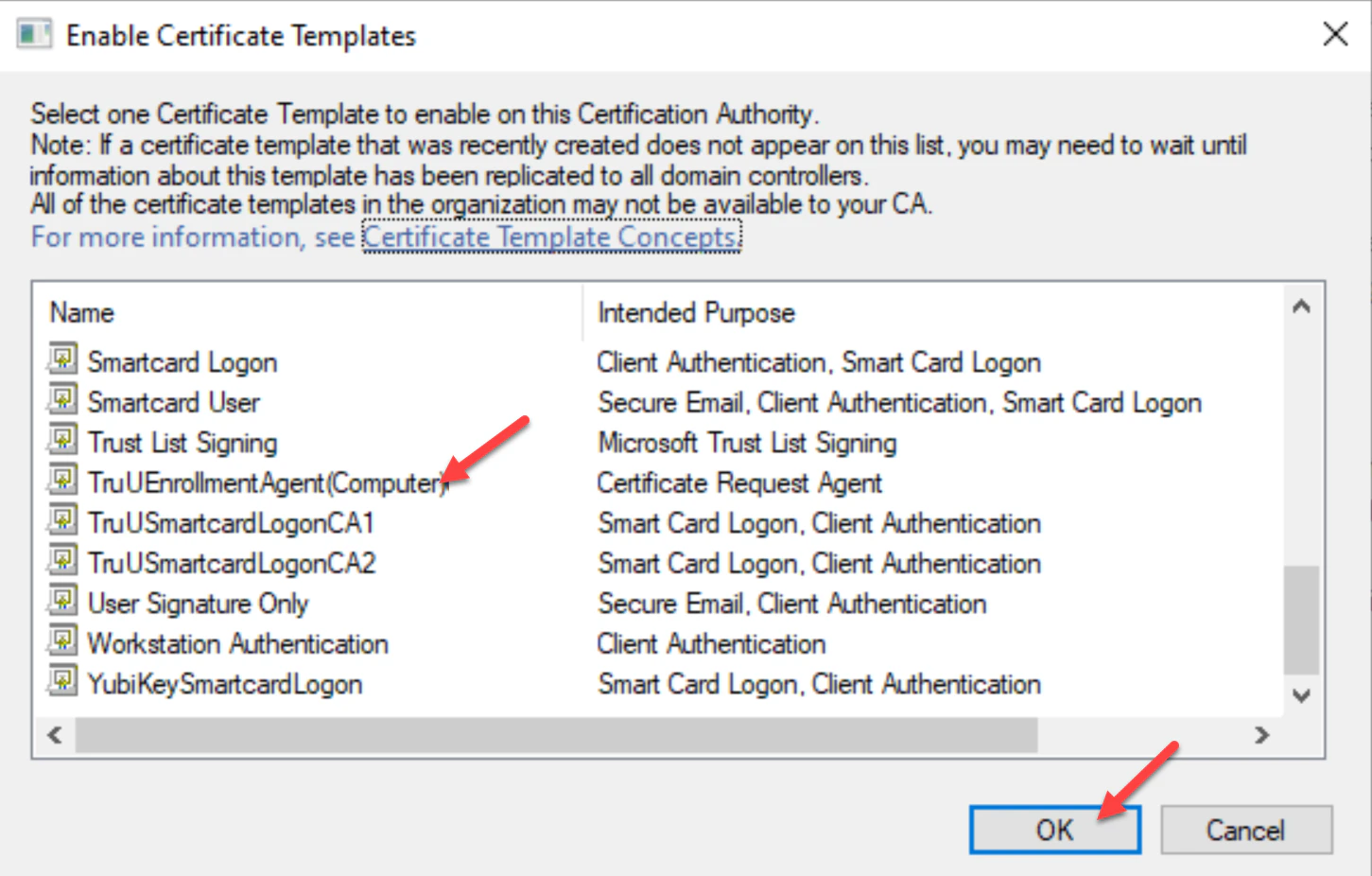

  1. Select the TruUEnrollmentAgent(Computer) template, then click OK.
  1. The new TruUEnrollmentAgent(Computer) template will appear in the list of Certificate Templates. Rightclick on the new Enrollment Agent template to verify its properties are set. Then, click OK to complete.
Note: The Certificate Request Agent intended purpose is configured for this certificate template only.
