TruU JAMF Pre-Stage Deployment using JAMF Setup Manager

​

Preface

1. Seamless Integration with Setup Assistant: Setup Manager runs during the initial setup phase, ensuring the MDM and secure token processes are not disrupted
2. Customizable via Configuration Profiles: Administrators have full control over the setup process through configuration profiles. These profiles determine which policies and installations are executed
3. Flexible Assignments: New Macs can be pre-configured and assigned to the appropriate users before distribution
4. Non-intrusive Process: By executing before user creation, Setup Manager ensures the device is ready without interfering with user workflows

​

Jamf Setup Manager: Workflow and Execution

1. Configuration Profile Setup: Use a configuration profile to define app installations, package deployments, and branding. Jamf Setup Manager is installed during PreStage enrollment via Automated Device Enrollment
2. Enrollment Actions: Tasks, like package installations, are defined in the configuration profile and triggered by Jamf policies.
3. Package Installation: Custom policies deploy packages using Installomater, integrated within Jamf Setup Manager
4. Branding: Icons, titles, and messages specified in the profile create a personalized setup experience
5. Custom Attributes: You can set attributes like computer name and asset tag during the setup process
6. Final Action: Setup Manager concludes with a defined action, like a system restart or finishing Setup Assistant
7. Cleanup: A flag file (/private/var/db/.JamfSetupEnrollmentDone) is created upon completion to prevent reruns

​

Jamf Pro Preparation for Setup Manager

• Jamf Setup Manager: Releases - JAMF-Concepts/Setup-Manager
• Jamf Composer: JAMF Account
• Jamf Pro Server (Version 11.9): Ensure you are working with Jamf Pro server 11.9 or later to utilize the features and functionalities outlined in this guide
• A Non-Production Mac with macOS 14.5: The Mac should be enrolled in Apple Business Manager (ABM) or Apple School Manager (ASM) and assigned to your Jamf Pro server

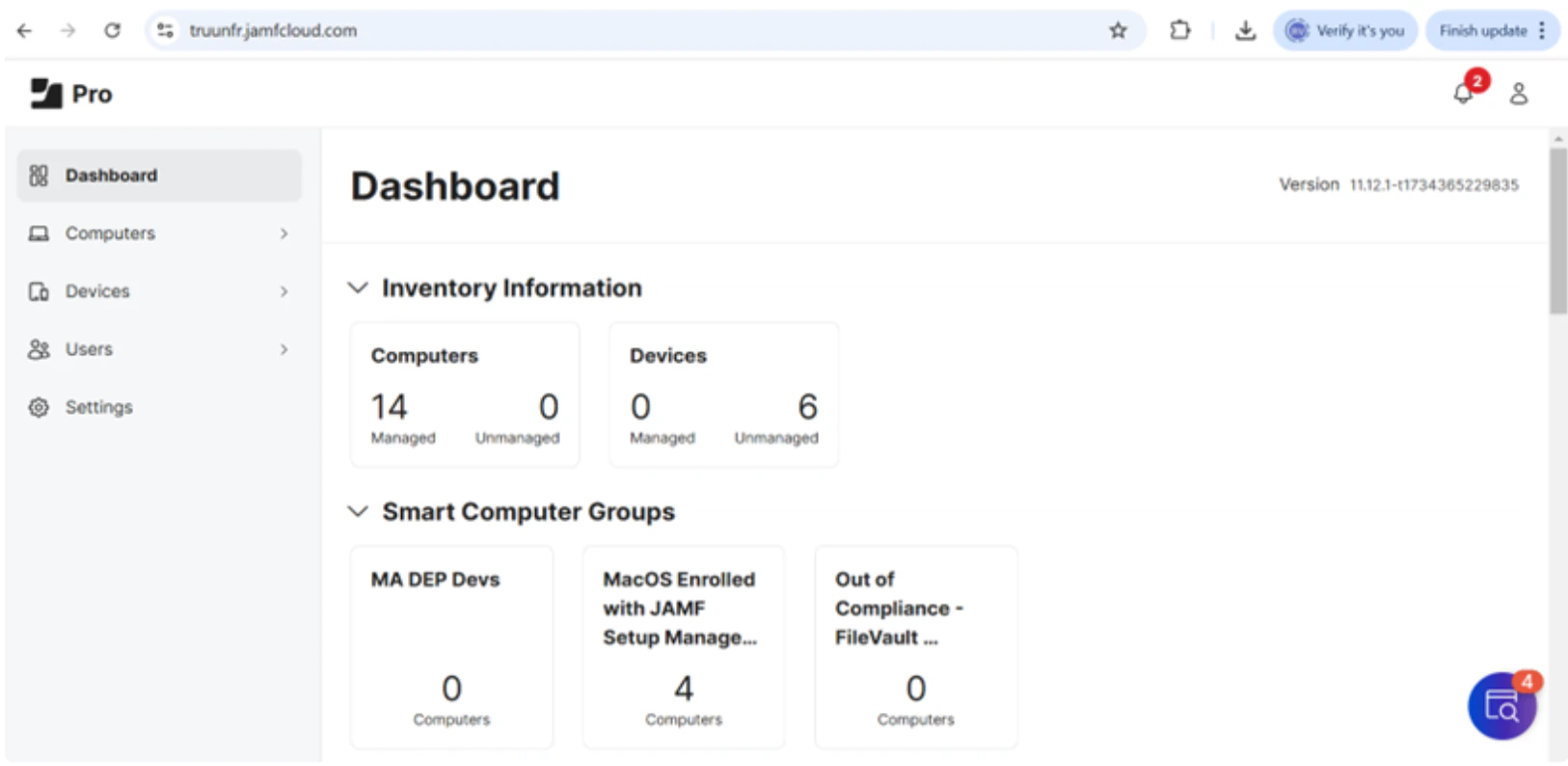

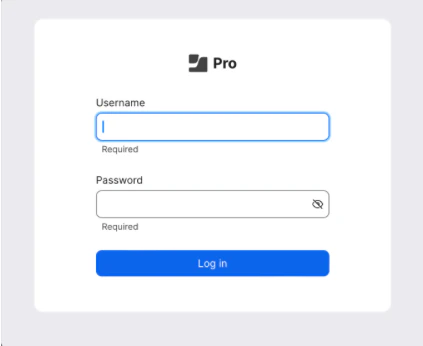

1. Log into your Jamf Pro Server with administrative credentials

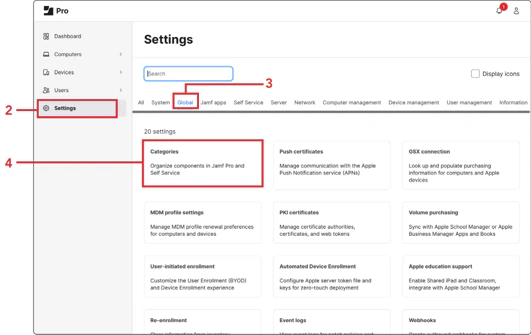

2. Click Settings
3. Click Global
4. Click Categories
5. Click New
6. Enter Jamf Setup Manager for the Display Name
7. Click Save

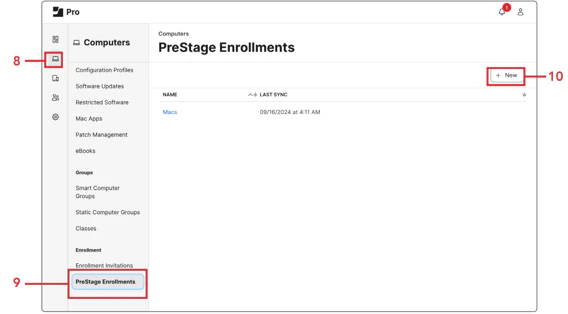

8. Click Computers
9. Click PreStage Enrollments
10. Click New

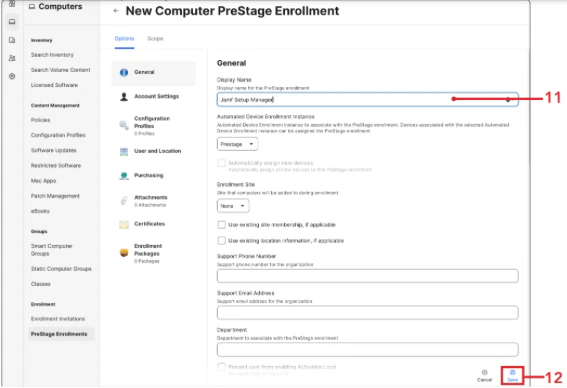

11. Enter Jamf Setup Manager for the Display Name
12. Click Save. We will finish the configuration of the PreStage in Section 7 of this guide
13. Click Computers
14. Click Smart Computer Groups
15. Click New

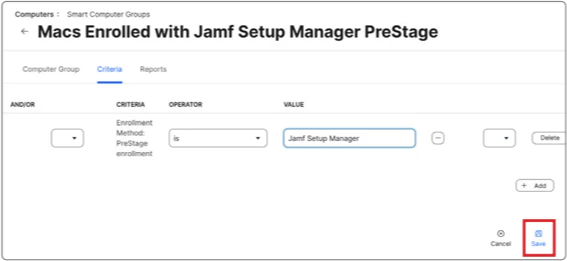

16. For the Display Name, enter Macs Enrolled with Jamf Setup Manager PreStage
17. Click Criteria
18. Click Add
19. Click Show Advanced Criteria
20. Scroll to Enrollment Method: PreStage Enrollment
21. Click Choose
22. Click Browse (..,)
23. Choose Jamf Setup Manager
24. Click Save

​

Create a Jamf Setup Manager Configuration Profile

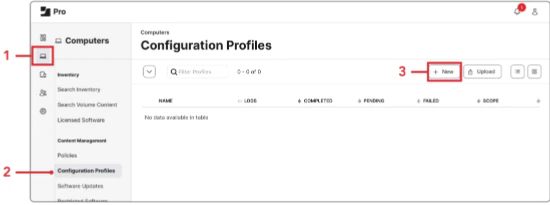

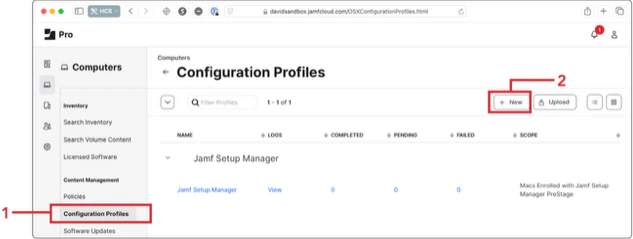

1. Click Computers
2. Click Configuration Profiles
3. Click New
4. Enter Jamf Setup Manager for the name. The Jamf Setup Manager Profile defines how the setup assistant installs apps, deploys packages, applies custom branding and allows the manual creation of computer name and asset tags during Automated Device Enrollment (ADE)
5. Set the “Category” to Jamf Setup Manager
6. Click on Application & Custom Settings
7. Click Jamf Applications
8. Click Add
9. Click on the Jamf Application domain menu

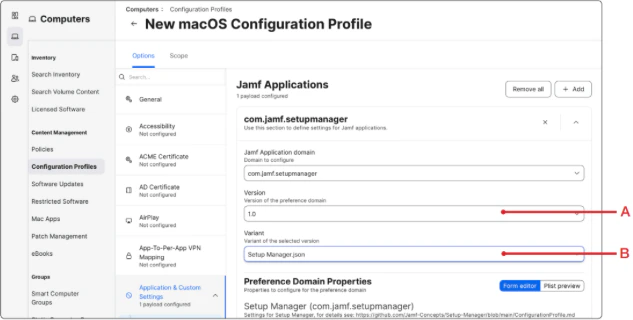

10. Select com.jamf.setupmanager
11. Select the following:
    1. Version:1.0
    2. Variant: Setup Manager.json
12. Let’s configure the icon, title and message we would like for the employee to see when they enroll the Mac for the first time. Scroll down to “Preference Domain Properties”
    1. Icon Source - This can come from a URL, path to an application where the icon will be pulled automatically if the application exists on the Mac
    2. Title - Add your organization here
    3. Message - A message you want to display to your users
13. In the Enrollment Actions section, click Add Item

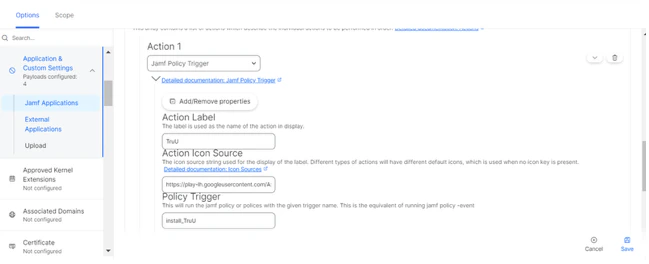

14. For item 1, select Jamf Policy Trigger. Enter the following:
    1. Action Label - The verbiage you want the employee to see when the policy is running in Jamf Setup Manager. This guide will use TruU
    2. Action Icon Source - This can be a URL or a path to an application. This guide will use the URL below https://play-lh.googleusercontent.com/Ax3ZF3BvNa8p8_ojgJo-JyINulb9fLz5qkb9T0JsK0omEf1zGp5Mc8k970pkMzrM-v1Y
    3. Policy Trigger - Even though the policy has not been created, we are going to name the policy trigger: install_TruU
15. Click Add Item. You can also add other applications which needs to be deployed during the Jamf setup manager
16. Click Scope
17. Click Add
18. Click Computer Groups
19. Click Add for “Macs Enrolled with Jamf Setup Manager PreStage”
20. Click Done
21. Click Save

​

Create a Configuration profile for FileVault Enablement

1. Click Configuration Profiles
2. Click New
3. In the name field, enter FileVault Enablement for ADE
4. Select the category, Jamf Setup Manager
5. Scroll down to the Security and Privacy Payload

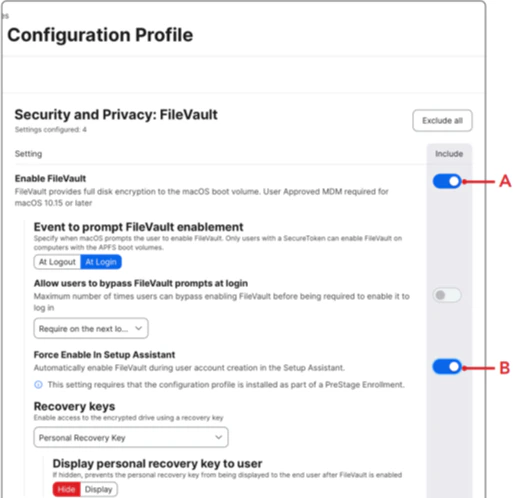

6. Click FileVault
7. Enable the following:
   1. Enable FileVault
   2. Force Enable in Setup Assistant

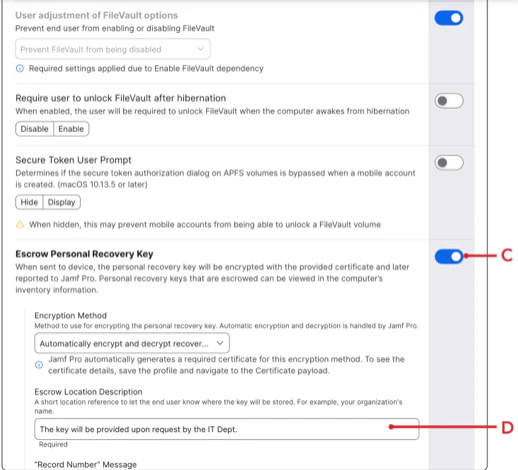

   3. Escrow Personal Recovery Key
   4. Enter the following message: The key will be provided upon request by the IT Dept
8. Click Scope
9. Click Add
10. Click Computer Groups
11. Click Add for Macs Enrolled with Jamf Setup Manager PreStage
12. Click Done
13. Click Save

​

Upload Packages to Jamf Pro

1. Go back to your Jamf Pro Server.

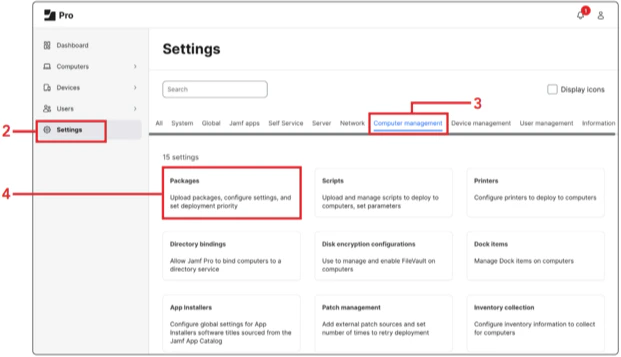

2. Click Settings
3. Click Computer management
4. Click Packages
5. Click New
6. Drag the Setup.Manager.1.0-368.pkg from your “Downloads folder” to the “Drop file here” field
7. Set the Category to Jamf Setup Manager
8. Click Save
9. Click Previous (←)
10. Click New
11. Repeat steps 6 through 9 to upload TruU PKG file
12. Confirm you have uploaded the following packages before continuing:
    1. Setup.Manager.1.0-368.pkg
    2. TruU.pkg
    3. ADE Tracker (use for the pre-stage deployment on slow networks). NOTE: You must make sure to set this package’s priority to the highest priority (1) Importing TruU Packages for JAMF Setup

​

Create a Policy in Jamf Pro

1. Click Computers
2. Click Policies
3. Click New
4. Configure the following:
   1. Display Name: TruU_XXX
   2. Category: Select a category of your choosing. This guide will use Jamf Setup Manager

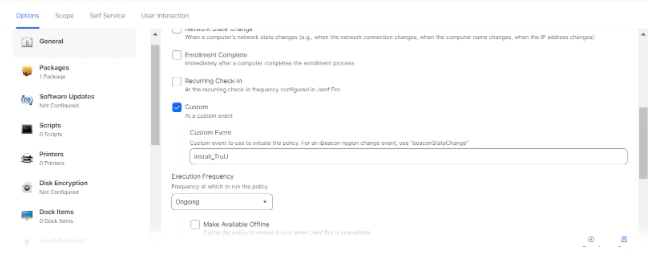

   3. Trigger: Select Custom and enter install_TruU
   4. Execution Frequency: Ongoing
5. Click the Packages payload
6. Click Configure
7. Click add for TruU.pkg
8. Confirm the action is set to install
9. Click Scope
10. Click Add
11. Click Computer Groups
12. Click Add for Macs Enrolled with Jamf Setup Manager PreStage
13. Click Done
14. Click Save
15. Confirm the policy was created

​

Add TruU Mac Authenticator config file

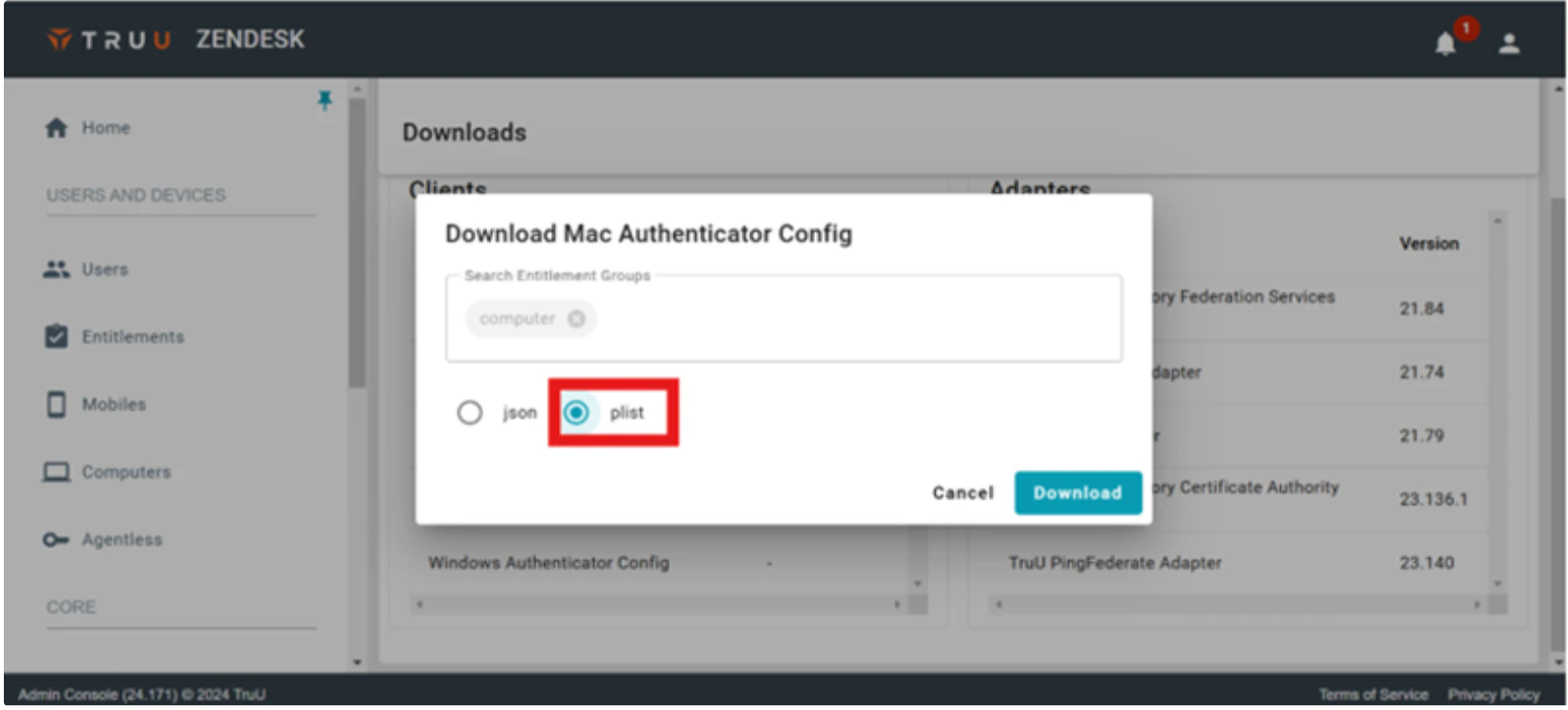

1. Download the TruU MA config file from the your admin console in plist format.
2. Open your JAMF Pro Admin Portal

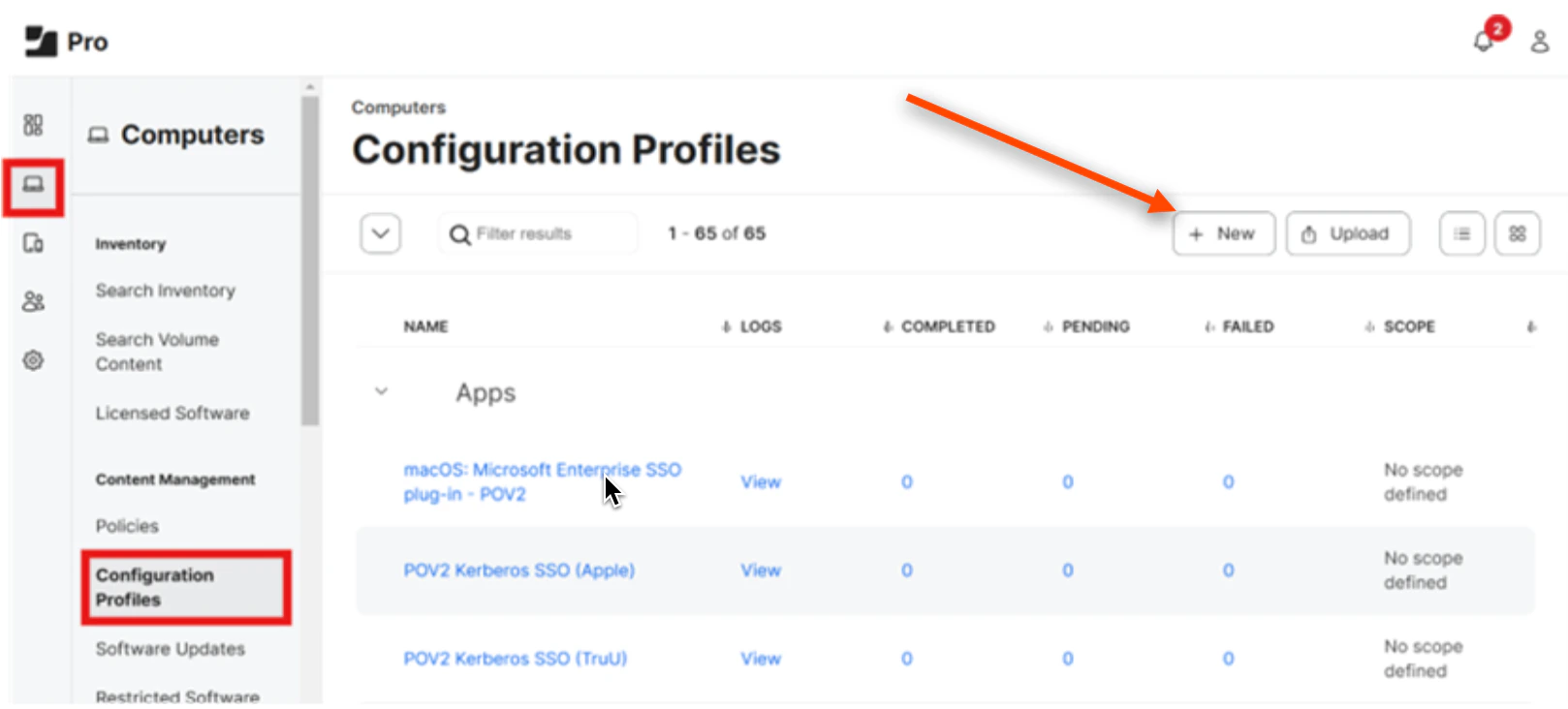

3. Select Computers and then click Configuration Profiles and select New

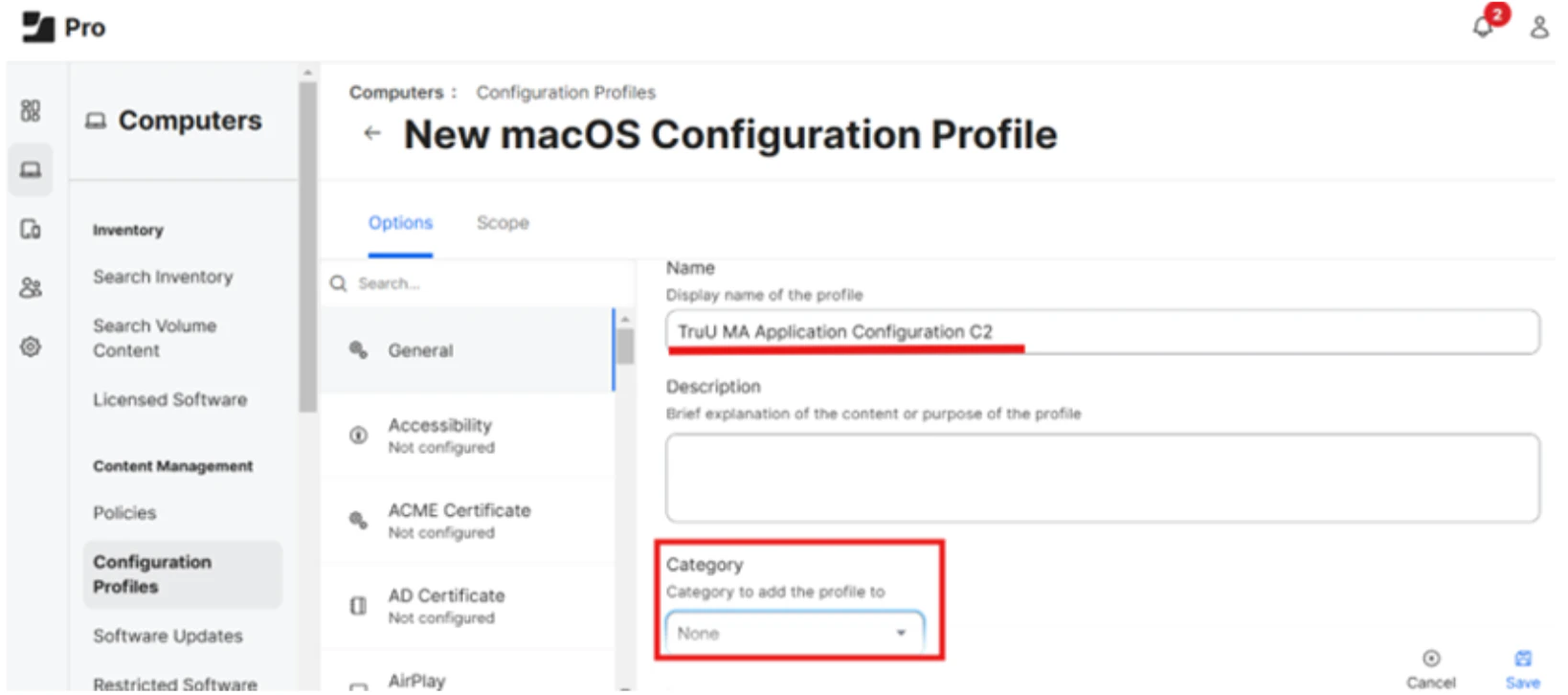

4. Under “General”, add a name and select the appropriate Category

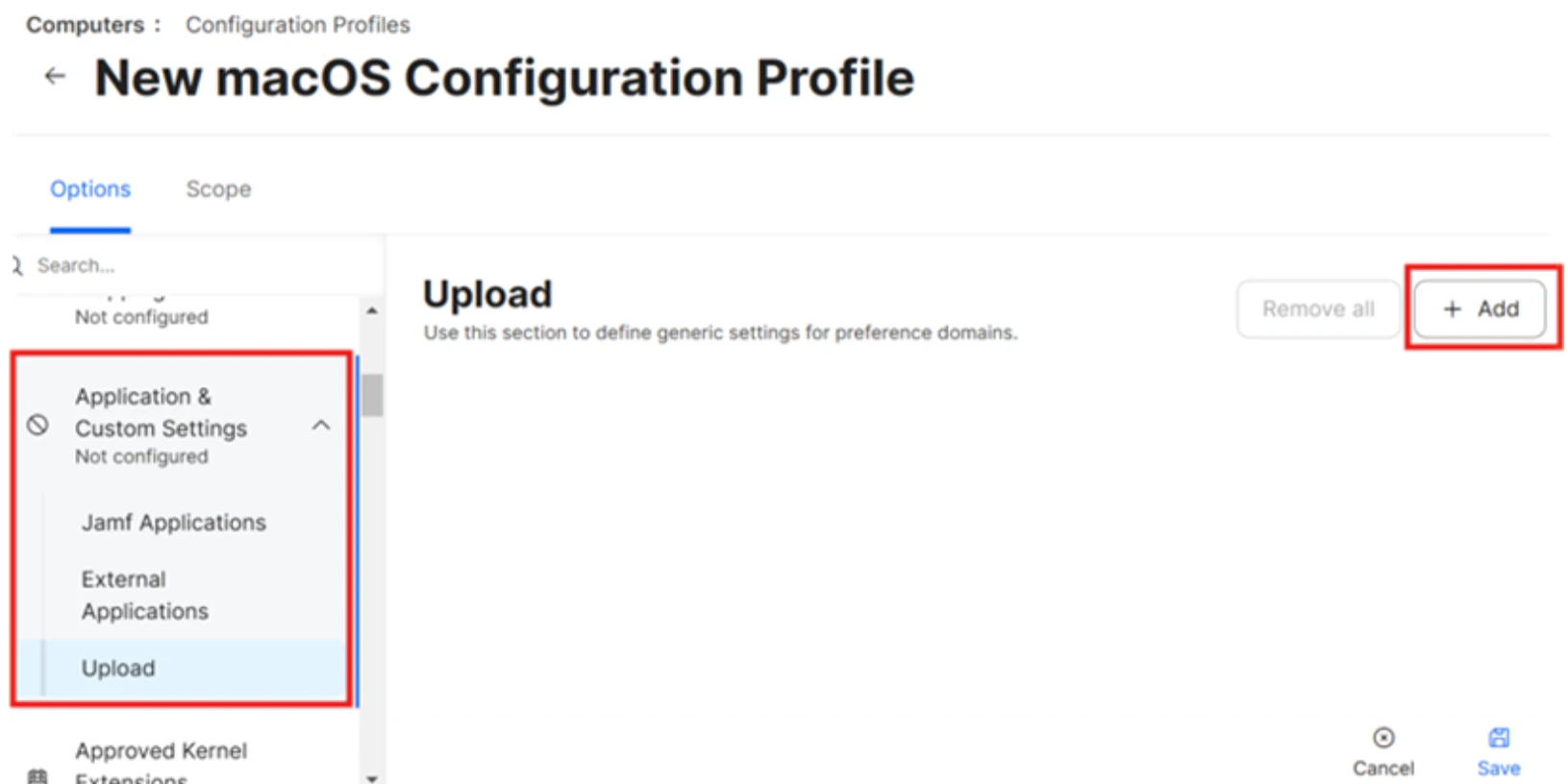

5. In the left menu, select Application and Custom Settings. Then, click Upload

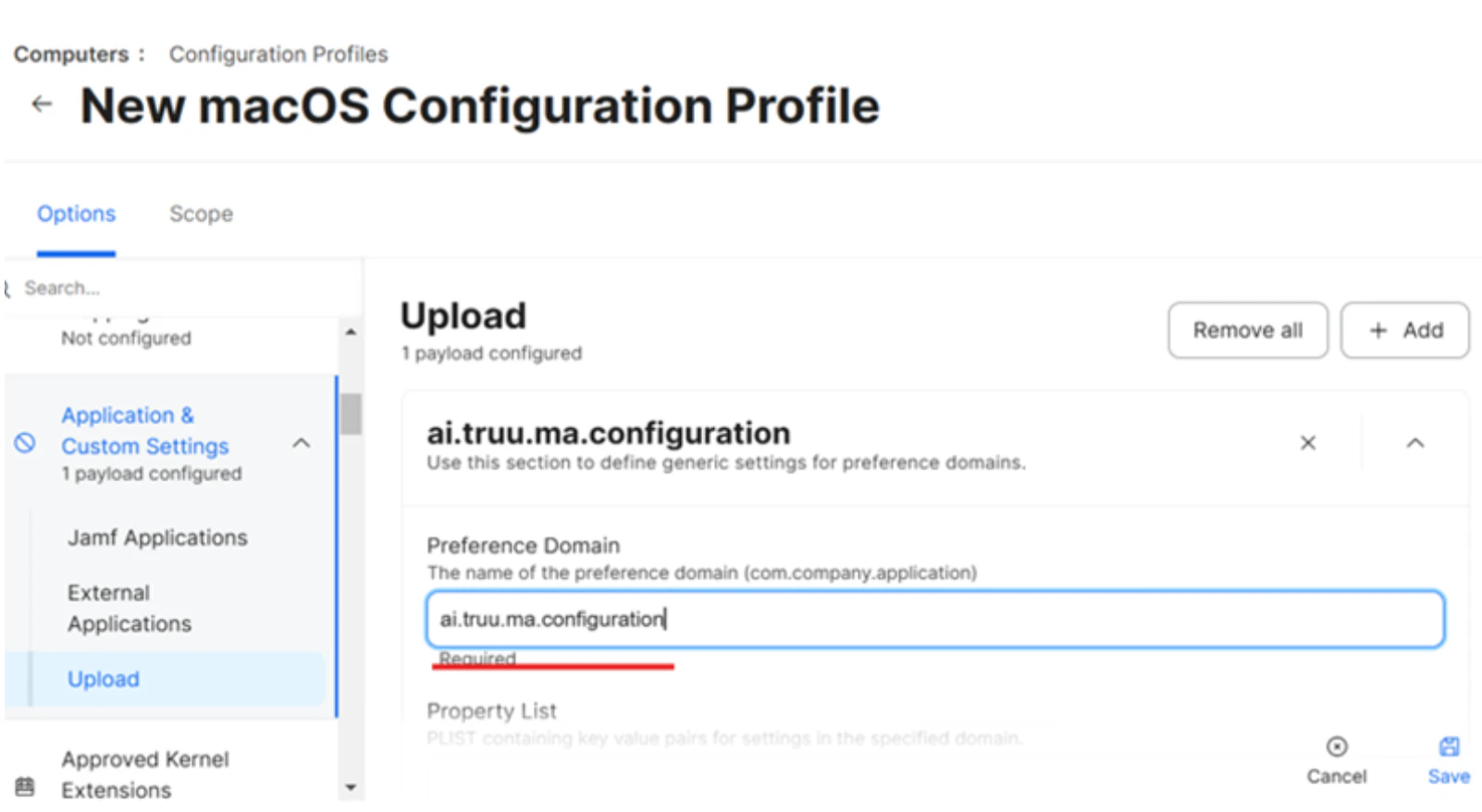

6. Click Add and add ai.truu.ma.configuration as the custom domain

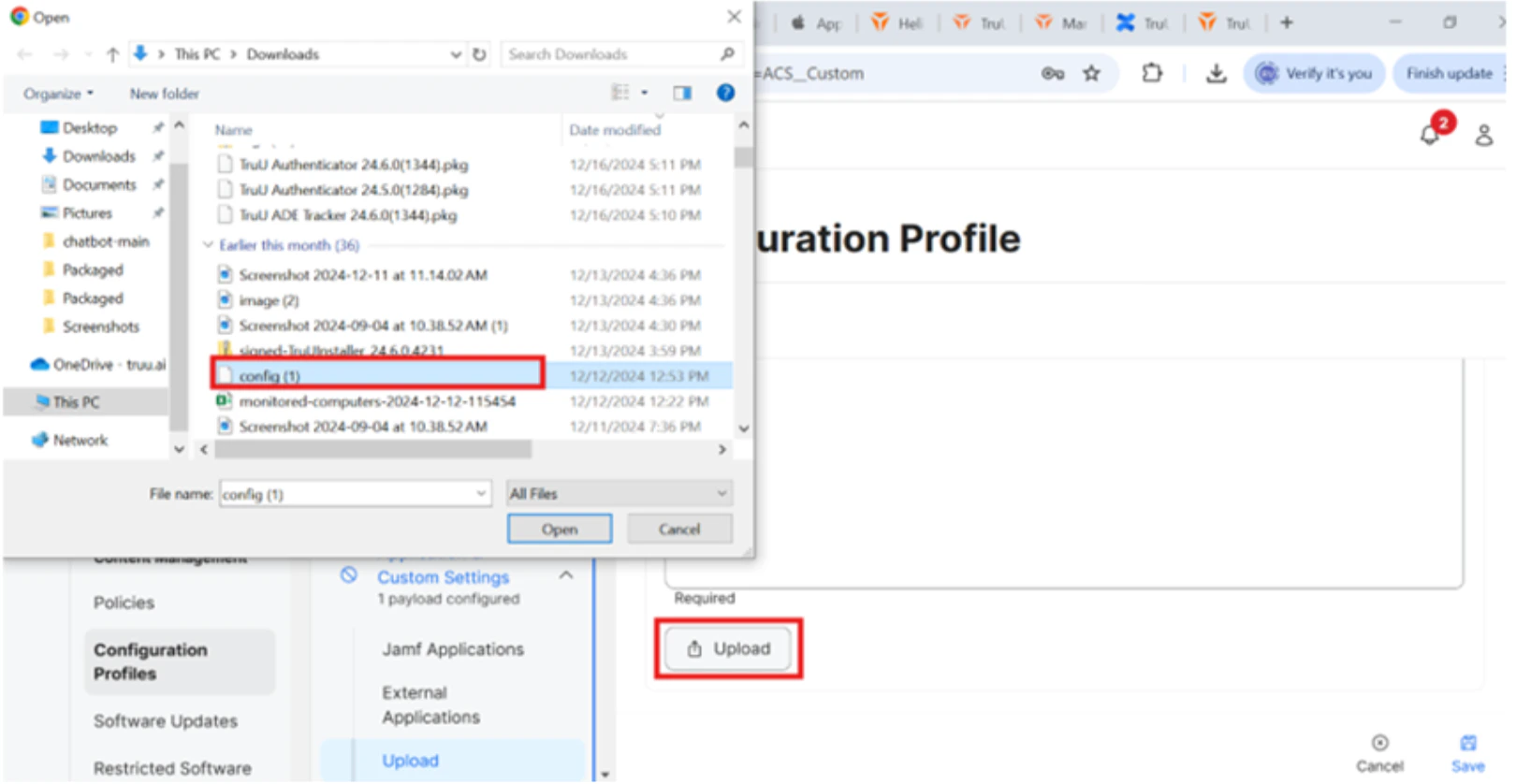

7. Scroll down and select Upload. Then, select the plist config file and click Open

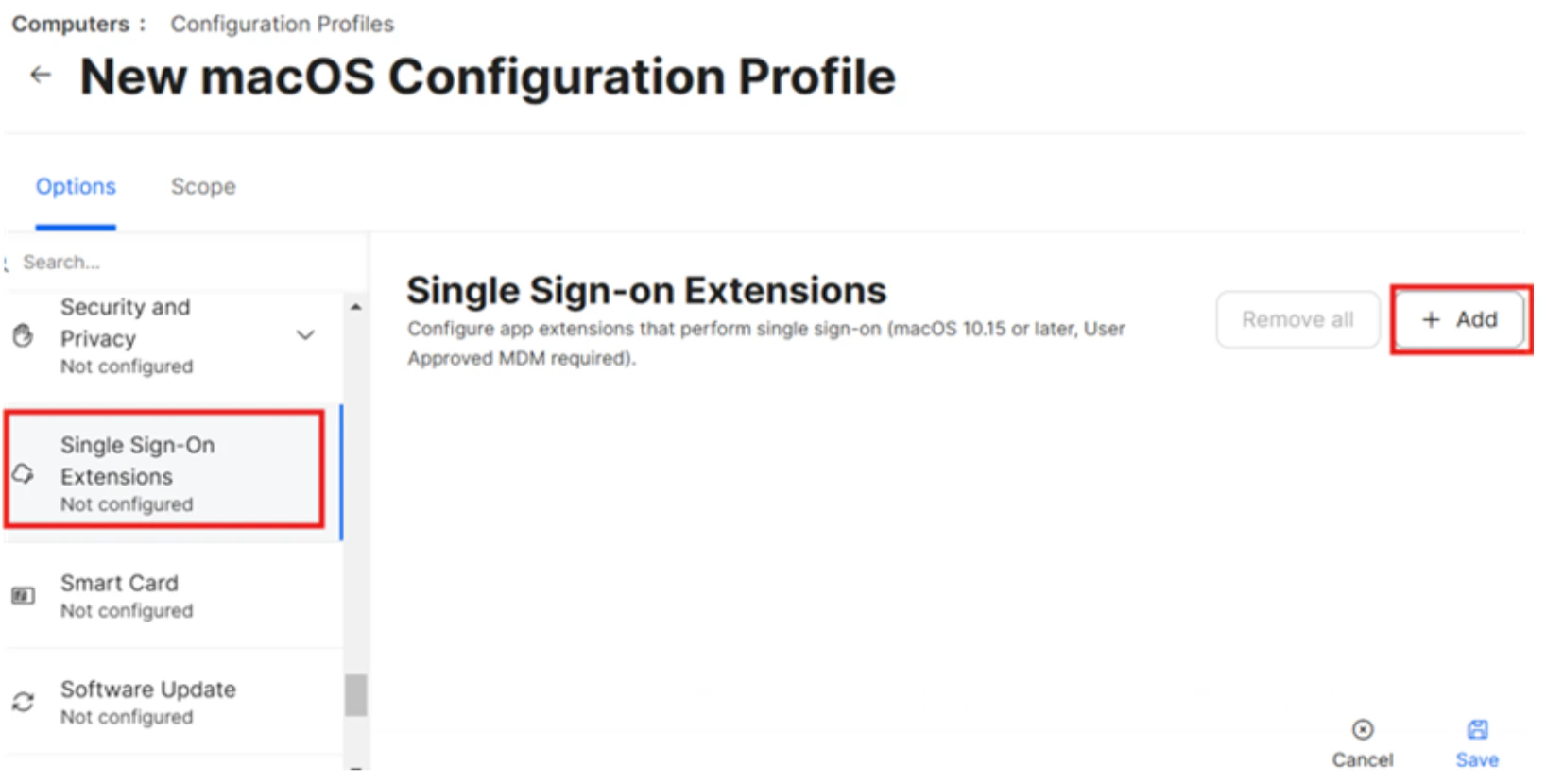

8. Select Single Sign-On Extensions and click Add
9. Select the “Payload Type” as SSO
10. Add the “Extension Identifier as com.truu.LoginHost.SSO
11. Add the “Team Identifier” as VGJPA2G633
12. Select “Sign-On Type” as Credential
13. Add the “Realm” as corp.truu.ai
14. Add the “Hosts” as corp.truu.ai

​

Configure the PreStage Enrollment using Jamf Setup Manager

1. Click Computers
2. Click PreStage Enrollments
3. Click on Jamf Setup Manager

4. On the bottom-right, click Edit

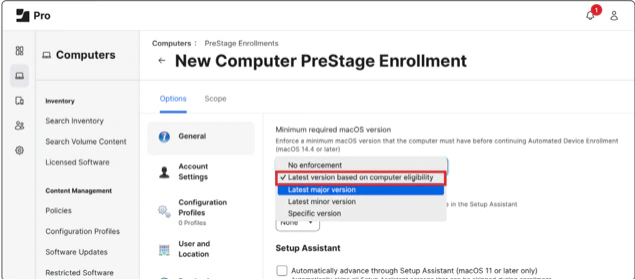

5. In the General payload, scroll down to “Minimum required macOS version”
6. From the menu, select Latest version based on computer eligibility. This will verify that the device is on the latest macOS based on Mac eligibility before going through Automated Device Enrollment.

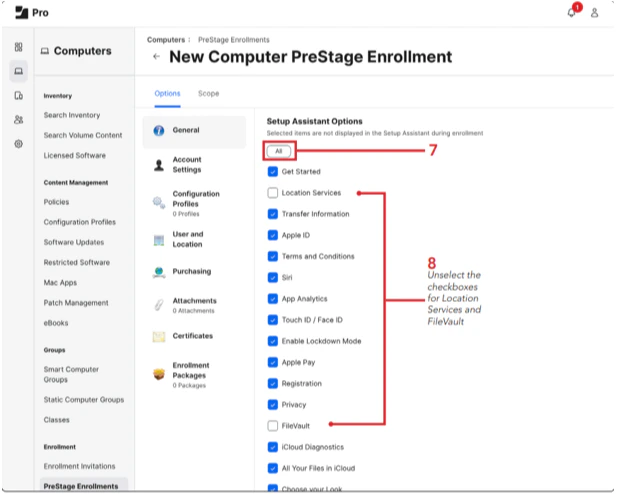

7. Scroll down to Setup Assistant Options, click All to select everything
8. Deselect the box for Location Services and FileVault. We’ll leave these unselected so FileVault will automatically enable with a configuration profile during the setup and the user will be prompted to enable Location Services during setup assistant
9. Click on the Configuration Profile payload
10. Click Configure
11. Select FileVault Enablement for ADE and Jamf Setup Manager profile
12. Click Enrollment Packages
13. Click Configure
14. Click Add for Setup.Manager.1.0-368.pkg
15. Select the radio button for Cloud Distribution Point (Jamf Cloud)
16. Click Scope
17. Select a Mac to use for testing with Jamf Setup Manager
18. Click Save
